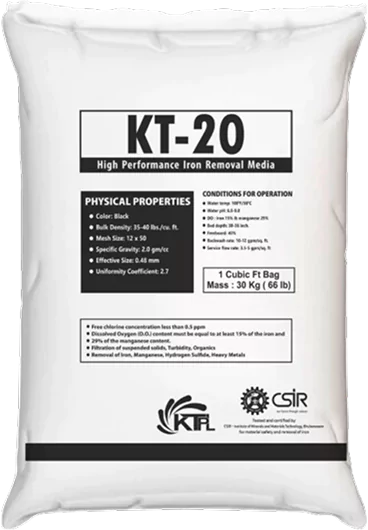

KT-20

High performance filter media for (fe), manganese (mn), h2s as well as arsenic, radionuclide and heavy metals in water
product
product
product
product

Water Treatment Company

product

Purification : RO + UV + UF + TDS Control

Capacity : 8 liters

Purification Rate : 20 liters per hour

Suitable For : Brackish, tap, or municipal water

Power Consumption : 60W

product

Purification : RO + UV + UF + TDS Control

Capacity : 8 liters

Purification Rate : 20 liters per hour

Suitable For : Brackish, tap, or municipal water

Power Consumption : 60W

product

Purification : RO + UV + UF + TDS Control

Capacity : 8 liters

Purification Rate : 20 liters per hour

Suitable For : Brackish, tap, or municipal water

Power Consumption : 60W

Technical Data

Conditions For Operation
Water Temp 100°F/38°C
Water PH 6.8-9.0
Dissolved Oxygen 15% of iron & 29% of manganese content

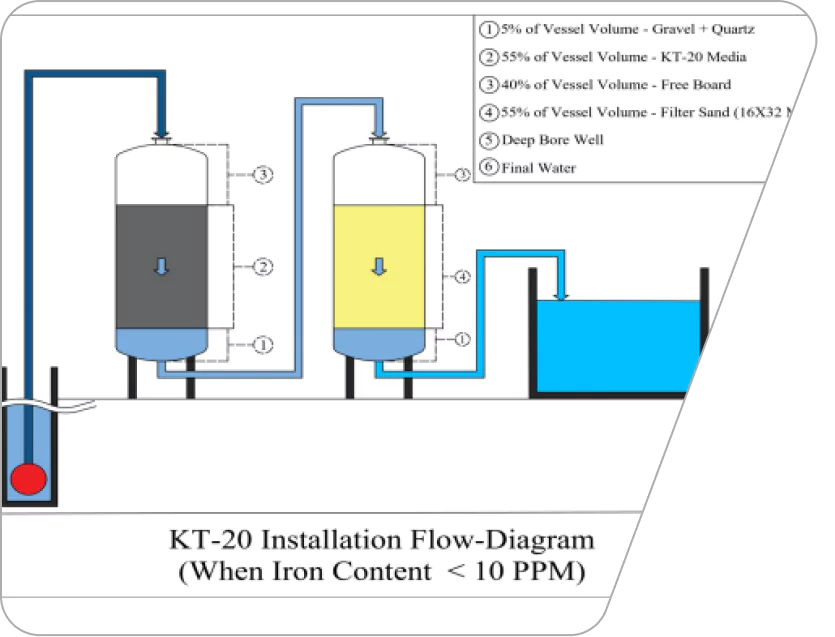

Bed Depth 30 - 40 Inches.
Freeboard 40%
Backwash rate 0.48 mm
Freeboard 2.7
Backwash rate 10-12 gpm/sq. ft.
Service flow rate 3.5-5 gpm/sq. ft
Physical Properties
Color Black
Bulk Density 1390 Kg/M³
Particle Size 0.8 - 1.2 mm
Specific Gravity 2.0 gm/cc
Effective Size 0.98 mm
Uniformity Coefficient 1.7

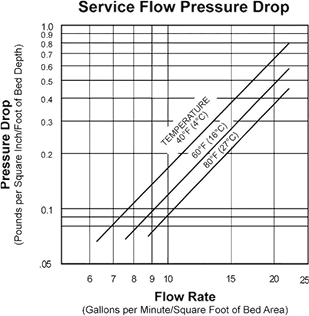

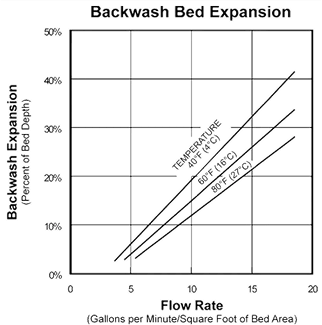

KT-20 Pressure Drop Graph


KT-20 Pressure Drop Graph

KT-20™

High Performance Iron Removal Media

KT-20 is an effcient and high performance water filter media for the reduction of dissolved iron and manganese compounds from raw water supplies. It maybe used in either gravity feed or pressurized water treatment systems. KT-20 water filter media acts as an insoluble catalyst to enhance the reaction between dissolved oxygen (D.O.) and the iron compounds. In ground waters the dissolved iron is usually in the ferrous bicarbonate state due tothe excess of

about

pdf downloads

pdf

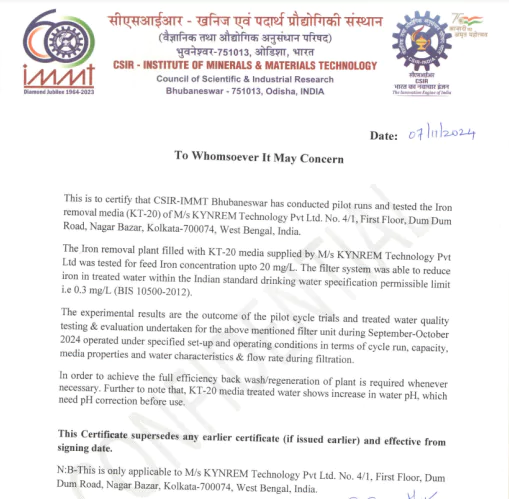

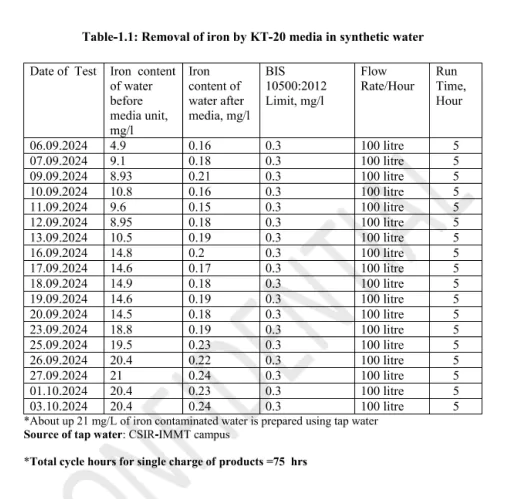

Remove of Iron by KT-20

pdf

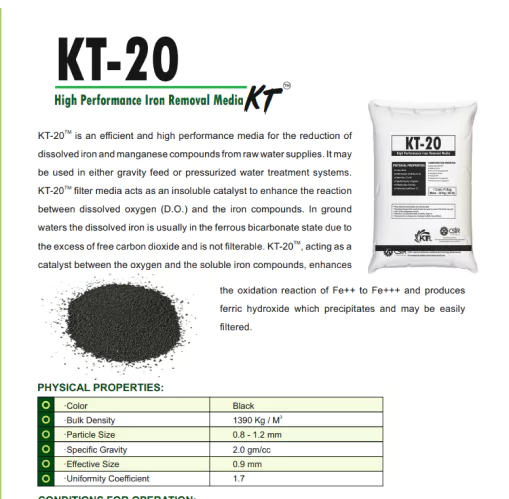

KT20 Data Sheet

HIGH LIGHT

  1. Hight Surface Area
  2. Electrolytic Manganese Dioxide Coated
  3. High Iron, H2S, Manganese Removal Capacity
  4. Suspended solids and Turbidity Removal Capacity
  5. Arsenic and Other Heavy Metals Removal Capacity
  6. Organics Compounds Removal Capacity
  7. Odour & Colour Removal Capacity
  8. Sediment Removal Capacity
  9. Filtration of Less Than 3 Micron
about

Testimonials

John Doe

User

John Doe

User

Video Thumbnail

John Doe

User

John Doe

User

John Doe

User

Frequently Asked Questions

Media filters are used to protect water quality in streams, rivers, and lakes. They can be effective at removing pollutants in stormwater such as suspended solids and phosphorus. Filter media are the portion of a filtering system that separates unwanted particles from the substance being filtered. The type of material used as a filter medium is dependant upon the material being filtered...

Media filtration is the physical capture of pollutants and adsorption of pollutants through chemical reaction. Commonly, media filtration systems are composed of Treated sand-KT, Manganese Dioxide, Anthracite, or other similar materials. Carbon is also a common media found in these types of filtration systems. Media filters work by having the water pass over and through the media. The pollutants become trapped in the voids of the media particles and on the surfaces of the media particles. Another way media filtration works is the pollutants are removed through chemical and molecular action, or cation exchange. This process is commonly used in media filters that target nutrient and metal removal. To be as successful as possible in pollutant removal with media filtration, it is important to know the goals in order to select the appropriate media gradation and composition...

We consider filter media to have an average life of 15 years with a range of 10 to 20 years depending on site-specific factors, like backwash type and frequency, operational frequency, media type and condition, and overall filter performance. Unless there is a major hydraulic upset, filter media does not simply fail.

  • Know what the purpose of each chemical feed is
  • Monitor backwashes
  • Clean the media
  • Dispose of the media if arsenic or radium is present
